CNC Semi Production Mill Manufacturer,Supplier and Exporter in India
Product Code : EL-CTM-11740

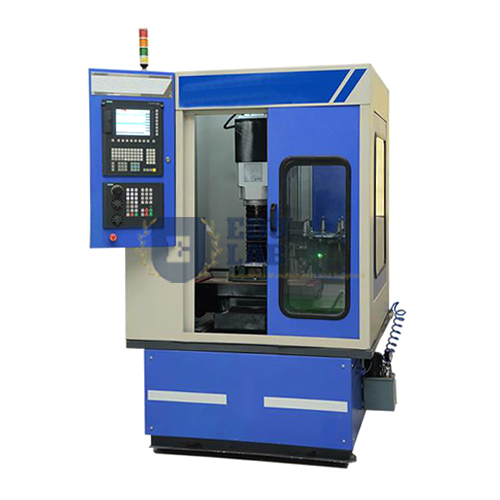

CNC Semi Production Mill
Description:-
Semi Production Mill machine specially
designed with industrial controller.
This machine which is specifically designed
for educational institutes offers hands-on experience of industrial machines
with safety features of trainer machines.
Specification:-
Axis Motor and Drive
Servo Motor with Servo Drives
X Axis
300 mm
Y Axis
225 mm
Z Axis
250 mm
Spindle to column distance
270 mm
Feed Rate
0 to 10,000 mm/min
Rapid Travel
10,000 mm/min
Guideways
LM Guideways
Table Size
560 x 220 mm
T Slot
3 x 10 x 50
Load on Table
120 Kg
Spindle Motor Capacity
3 HP
Spindle RPM
100 to 4000 RPM
Positioning
0.010 mm
Repeatability
+- 0.005 mm
Resolution
0.001 mm
Tool Changer
Automatic
No. of Tools
8 / 12
Maximum Tool Length / Dia
40 mm / 16mm
Vice Type
Pneumatic/ Manual
Dimension in mm
1300 x 1100 x 1900 mm
