Spherometer

Product Code : EL-PLE-10959

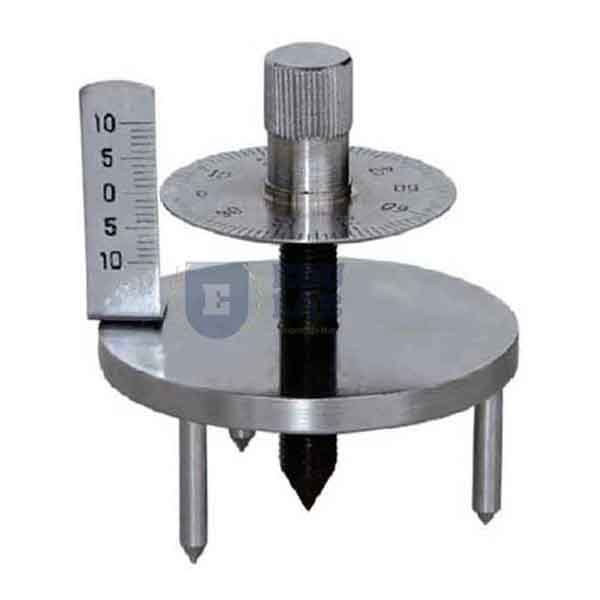

Spherometer
Comprising circular metal table 54mm diameter withthree accurately positioned steel legs and a steel screw thread working in a long adjustable brass bearing.
A circular scale is carried on the thread and a vertical scale on the table, enabling accurate micrometer type reading to be taken.

Specification:-
Dial 48mm diameter: divided in to 50 divisions, each representing 0.01mm, figured clockwise.
Screw thread 0.5mm pitchx6mm diameter.
Vertical scale 7 -to + in 1mm divisions.
Size of spherometer suitable for lenses and mirrors 50mm or more in diameter, overall height in scale on zero, 55mm approximately.
Range -7 to +7x0.01mm.
Accessory included Flat glass plate 50 x 50mm for checking zero.
