Water Hammer Demonstration Unit

Product Code : EL-EELE-11363

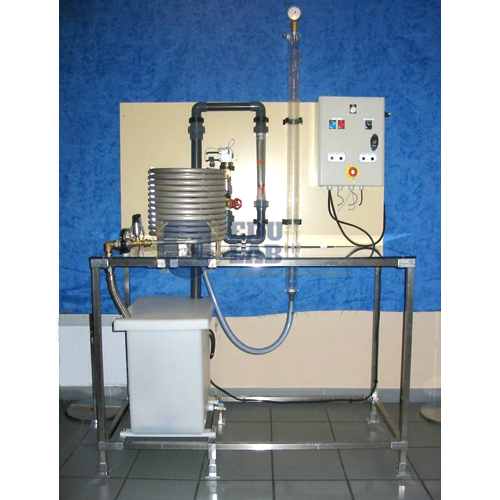

Water Hammer Demonstration Unit
The time required for the positive pressure wave to travel through the pipe is used to calculate the speed of sound in water. When the pressure attains the vapour pressure of the water in the conduit, it causes cavitation. Closing the pneumatic valve causes the pressure to rapidly attain a theoretical value and remain practically constant as the shock wave travels the length of the pipe, returning to the transducer as a negative pressure wave. The apparatus is designed to demonstrate shock waves in water at sonic velocity.

What the unit comprises

Pressure transducers1 pressure transducer upstream and 1 pressure transducer downstream of the coil
Flowmeter1 flowmeter with adjustment valve
Test coil11 m length coil in stainless steel tubing
Valve1 pneumatic valve
Pressure gauge1 Bourdon gauge
Control1 control cabinet
Water tank1 water tank with drain valve
Pump1 pump
Bypass1 bypass valve
Entrapped air control1 connection to a vertical tube with a bleed valve to atmospheric pressure for controlling entrapped air volume

Dimensions and weight

Weightabout 100 Kg
Dimensions1350 x 650 x 2150 mm
We are leading manufacturers, suppliers of Water Hammer Demonstration Unit for Electronics Engineering Lab Equipments. Contact us to get high quality Water Hammer Demonstration Unit for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.

Pipe-flow transients studied here complement steady-flow experiments on the Fluid Friction Apparatus and the Methods of Flow Measurement; the Dead-Weight Piston Gauge handles Bourdon-gauge calibration, while the Pumping Plant and the Control Valve Study Bench cover pumps and valves. Browse the complete Electronics Engineering Lab Equipments range under Electronics Lab.
