PLC with HMI Trainer Manufacturer,Supplier and Exporter in India

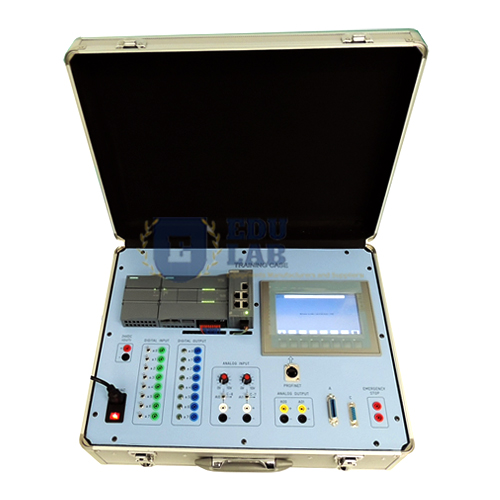

PLC with HMI Trainer

Product Code : EL-EELE-11405

PLC with HMI Trainer

Technical specifications

Integrated power supply24 V/5 A DC
Operating voltage230 V AC
Working memory50 kilobytes
Programming languageSTEP 7 or Equivalent
Processing times0.1 μs
I/OIntegrated inputs and outputs
Digital inputs14 Digital inputs, 24 V DC, via 4-mm safety sockets
Input simulation14 Latching push buttons for simulating digital inputs
Digital outputs10 Digital outputs, 24 V DC, via 4-mm safety sockets
Analog inputs2 Analog inputs, 0…10 V, via 4-mm safety sockets
Analog input simulation1 Potentiometer for simulating analog input
Analog output1 Analog output, 0..10V, via 4-mm safety sockets
PLC interfaceEthernet/ProfiNet Interface
Fieldbus modulePROFIBUS Module
ClockReal-time clock
HMITouch panel
HMI displayFully graphical colour display
Touch screen7" touch screen
HMI interfacePROFINET Interface
NetworkFour-way Ethernet switch
SoftwareSoftware for PLC with HMI Trainer
We are leading manufacturers, suppliers of PLC with HMI Trainer for Electronics Engineering Lab Equipments. Contact us to get high quality PLC with HMI Trainer for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.

For PLC fundamentals without the operator panel, see the Basic PLC Unit With Power Supply; for application practice, try the Conveyor Control By PLC and the Universal Application Simulator, and for relay logic the Relay Control Trainer. These trainers belong to our Electronics Engineering Lab Equipments range in Electronics Lab.
