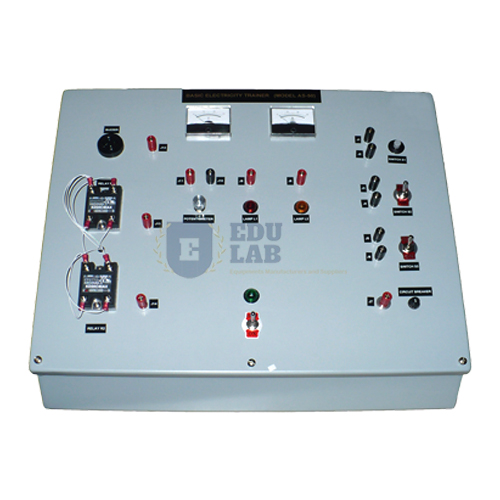

Electrical Circuit Trainer

Technical Specification:-

• Component symbols and electrical diagrams are represented on the front panel.

• Study the means to check the main laws and principles.

• General switch, fuse and signaling lamp.

• 1 Safety single phase transformer 115~230V / 6-12-24 V AC / 1 A.

• 2 Fuse holder with fuse type 6 x 30 – 1A.

• 1 Moving iron ammeter with range : 0.5 ~ 1A.

• 1 Moving iron voltmeter with range : 25 V.

• 10 Resistors of different values.

• 1 linear rheostat 100â„¦/25W.

• 4 Diodes 6A – 100V.

• 2 Lamp holder with 24V signaling lamp.

• 1 24Vac buzzer.

• 1 Electrolytic capacitor, 100µF, 25Vdc.

• 2 Electrolytic capacitors, 500µF, 25Vdc.

• 2 Inductances 60mH 0.5A.

• 2 Pushbuttons, 2 Shunters and 1 Inverter.

• 1 Relay, 2 Exchange contacts, 24Vac coil.

• 1 Set of 25 mm cables with 4 mm plug.

• Power source : 220~230V AC, 50Hz, 1 Phase.

• Provides knowledge on electrical engineering, installations and electric measurements.

Specifications

Safety transformer	115~230V / 6-12-24 V AC / 1 A
Moving iron ammeter range	0.5 ~ 1A
Moving iron voltmeter range	25 V
Power source	220~230V AC, 50Hz, 1 Phase

We are leading manufacturers, suppliers of Electrical Circuit Trainer for Electronics Engineering Lab Equipments. Contact us to get high quality Electrical Circuit Trainer for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.
